China Resin Cutting Wheel manufacturer

Milling Groove Cutting Blades Slot Slitting Wheel

Product Details:
Place of Origin: China
Brand Name: AUTOFOR
Certification: CE/SGS/ISO9001
Model Number: WWWQ205
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: carton/customized
Delivery Time: 15-25days

Detail Information

Adhesive: Resin Type: Ultra-thin Cutting Wheel
Usage: Metal &metallographic
Highlight:

ISO9001 Slot Slitting Wheel

,

Milling Groove Slot Slitting Wheel

Product Description

                                  Precision Resistance Milling gGroove Cutting Blades Slot Slitting Wheel



  It's used for cutting the material,like special alloy,difficult-to-cut compound materials,cemented cardide materials,tungsten,nickel,phenol and epoxy resin,single-crystal material,precision alouminum casting,extra-hard-tempered material,cutting the product like jet turbines,vehicle engine parts,golf-club heads,cemented carbide tools,PCB,joints,guides and rails,sample embedding materials,ceramic products,cylinder heads,regrinding products,electrical components and medical products.





Item    metallographic cutting wheels specification   Max.Speed
  OD(mm Thichness(mm) ID(mm)   RPM(r/min) M/S
WWQ115 115 1.0-- 16/25.4/30/31.75/32/40/50 B A60 8300 50
WWQ125 125 0.9-- 16/25.4/30/31.75/32/40/50 B A60 7600 50
WWQ150 150 1.0-- 16/25.4/30/31.75/32/40/50 B A46 6400 50
WWQ180 180 1.2-- 16/25.4/30/31.75/32/40/50 B A46 5300 50
WWQ205 205 1.5-- 16/25.4/30/31.75/32/40/50 B A46 4800 50
WWQ255 255 1.5-- 16/25.4/30/31.75/32/40/50 B A46 3800 50
WWQ305 305 1.5-- 16/25.4/30/31.75/32/40/50 B A60 3400 50
WWQ355 355 1.5-- 16/25.4/30/31.75/32/40/50 B A60 3400 50
WWQ405 405 1.8-- 16/25.4/30/31.75/32/40/50 B A60 3200 50
WWQ455 455 1.8-- 16/25.4/30/31.75/32/40/50 B A60 3200 50
WWQ510 510 1.8-- 16/25.4/30/31.75/32/40/50 B A60 3200 50





AUTOFOR has also developed medium and low hardness metal and alloy cutting wheels. AUTOFOR ultra-thin resin cutting wheel is different from the traditional grinding wheel. It has the following characteristics:
1. very high precision, strength and rigidity. High cutting precision;
2. not easy to be broken, not cut obliquely, the cutting edge is narrow, and the steel is saved to a great extent;
3. the cutting edge is narrow, and the steel is saved to a great extent;
4. there is no rubbery odor when cutting;
5. with high sharpness and durability.
AUTOFOR ultra-thin resin grinding wheel with AUTOFOR precision cutting machine is better! World's ultra-thin cutting piece, International Alto's AUTOFOR standard!

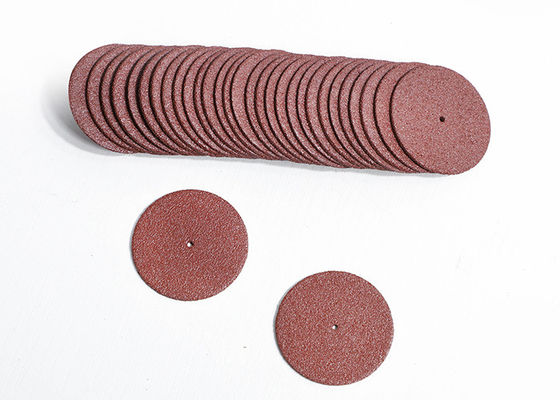

Milling Groove Cutting Blades Slot Slitting Wheel
