Amorphous and nanocrystalline precision magnetic core cutting machine

Product Description

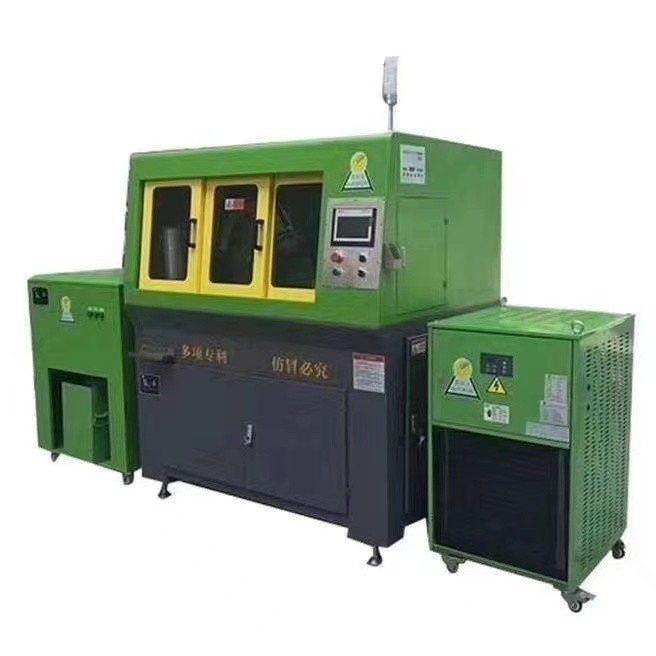

        Autofor offers a complete set of magnetic core precision cutting program consists of three parts, namely, "precision core cutting machine," "cutting fluid purification system," and "cooling system of cutting fluid."

       AUTOFOR is the world famous precision cutting solution system provider, more than 50 years has been focused on ultra-thin resin cutting sheet R & D and production, entering the Chinese market for the majority of enterprises to provide quality cutting services and received praise. At the same time to respond to the strong demand for precision cutting equipment, timely launch AUTOFOR precision magnetic core cutting machine. The precision cutting machine is suitable for metal, electronic components, crystal, carbide, biological materials (teeth, bone) and other materials for precision non-burn non-burr non-deformation cutting. The equipment adopts imported accessories to make it precise, stable and reliable operation to provide escort; At the same time, excellent and stable operating system and equipped with large-size full-touch screen, with user-friendly man-machine interface, easy to operate and maintain simple advantages. At the same time, AUTOFOR joint research and development of new high efficient and environmentally friendly cutting fluid, joint Autofor ultra-thin resin cutting blade and precision cutting machine three forces for enterprises and scientific research institutions to provide the best cutting solutions!

Main technical parameters
Power supply: three-phase 380V 50Hz

Cutting power: 5.5KW / 11KW
Cutting speed: 0-180 mm / min

Wheel speed: 0-4200 r / min
Power: 7.5KW

Net weight: about 1630KG
Slice size: # 255- # 355mm

Water tank capacity: about 100L
Maximum stroke: X axis (around platform) 420mm, Z axis (platform lifting) 120mm and Y axis (front and rear dovetail platform) ± 20mm
Dimensions: 1600mm * 1210mm * 1820 (excluding lamp) mm.

Specific equipment to the field equipment parameters prevail.
