Product Description

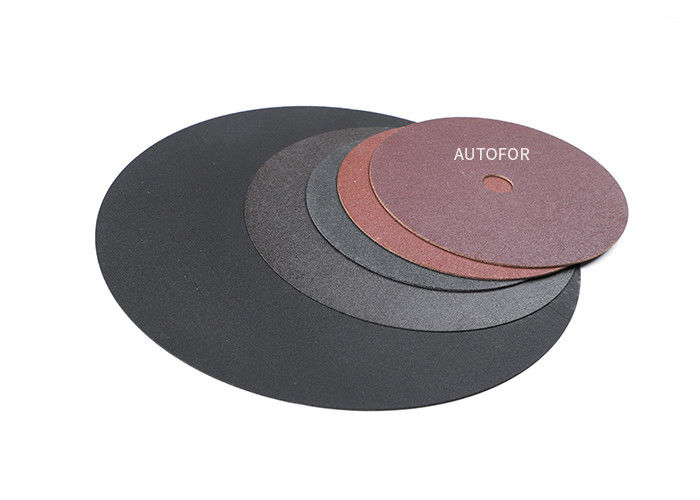

Stainless steel cutting piece for Automotive bearings/spring steel/golf clubs
Custmoized the size and formula of cutting wheels for carbon steel/cylinder /nickel titanium cobalt,high efficiecy and good port quality.
Autofor cutting wheel perfectly cuts any metal hardness HRC0-90.
At present, Autofor divides metal hardness into four categories.
1.HRC <30 2.HRC 30-50 3.HRC50-60 4.HRC>60.
At the same time, the cutting wheel has four kinds of hardnesses PB>MB>LB>KB, suitable for various metallographic specimens cutting,
HRC40-50(non-heat treated steel):Carbon Steel,Stainless Steel,S-C Series Tool Steel,SK Series,SS Series Mild Steel.
HRC50-60(heat treated steel-alloy sool steel):SKS,SKT,SK3,SUP,S45C,SCM415,SNCM439.
HRC58-64(hard heat treated steel):Special Alloy Steel,SKD,SKH,SKS3,SCM415,SACM,SNCM439.
HRC40-63(cast iron FC and forged cast iron):Cotton Series.
Advantages:
1. Strong strength and high safety.
2. good wear resistance (the general market grinding wheel hardness is HRA50-70, this product can reach HRA100 or more).
3. Strong sharpness, can improve work efficiency, etc.
4. The grinding wheel is straight, so the material to be cut is straight, no material is wasted and the material to be cut can be dispensed with.
Cutting Effects:
Various metal/alloy/metallographic/non-metal Precision Cut-off Wheel(size)
| Model |
OD(mm) |
THK(mm) |
ID(mm) |
Line speed (m/s) |
| WWQ115 |
115 |
≥0.14 |
12.7/16/25.4/30/31.75/32/40/50 |
50--80 |
| WWQ125 |
125 |
≥0.15 |
12.7/16/25.4/30/31.75/32/40/50 |
50--80 |
| WWQ150 |
150 |
≥0.25 |
12.7/16/25.4/30/31.75/32/40/50 |
50--80 |
| WWQ180 |
180 |
≥0.4 |
12.7/16/25.4/30/31.75/32/40/50 |
50--80 |
| WWQ205 |
205 |
≥0.4 |
12.7/16/25.4/30/31.75/32/40/50 |
50--70 |
| WWQ255 |
255 |
≥0.6 |
12.7/16/25.4/30/31.75/32/40/50 |
50--70 |
| WWQ305 |
305 |
≥1.0 |
12.7/16/25.4/30/31.75/32/40/50 |
50--70 |
| WWQ355 |
355 |
≥1.5 |
12.7/16/25.4/30/31.75/32/40/50 |
50--60 |
| WWQ405 |
405 |
≥1.8 |
12.7/16/25.4/30/31.75/32/40/50 |
50--60 |
| WWQ455 |
455 |
≥1.8 |
12.7/16/25.4/30/31.75/32/40/50 |
50--60 |
| WWQ510 |
510 |
≥1.8 |
12.7/16/25.4/30/31.75/32/40/50 |
40--50 |
Environmental Protection
AUTOFOR is committed to providing high quality and environmental friendly products for customers. We always put the ISO14001 environmental system into practice. All products of its brands have passed SGS environmental certification. The products are harmless to the environment and human body, and they can achieve zero pollution and zero emission. Let us protect the environment and build a beautiful home together by starting with AUTOFOR!
Application field
AUTOFOR products are widely used in aerospace, automobile, energy, electronics, education and other fields. In the industry of precision cutting technology, it has been in the forefront of domestic counterparts.
