Product Description

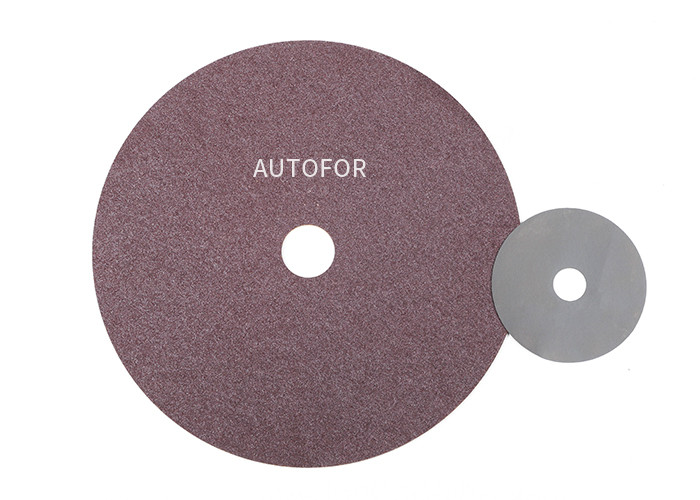

corrugated roll/FNG/corrungators cutting disc to cut and gap
AUTOFOR metal cutting disc enables to cut and gap the stainless steel like,corrugated roll, drill chuck,pen nip,etc.It's used by dry cutting.
AUTOFOR gear mold slotted cutting blades, the main advantages :
1. With good cut-resistance, 3 pieces of the same top brand products.
2. The thickness and precision of the cutting piece are very high, which can be used for precision milling, engraving, machining and cutting, and the product precision error is small.
3. The quality of the cutting port is free of burrs, no burns, smooth and bright, and does not need to be processed through two processes.
4. The cutting piece has good performance and will not burn the workpiece;
5. Specifications can be customized.
| Specifications of slotting/slotting/milling precision Cut-off Wheel(size:mm) |
|
| Model |
OD |
THK RANGE |
ID |
Line speed(m/s) |
| KC22 |
22 |
≥0.1 |
1.8/3.2 |
50-80 |
| KC35 |
35 |
≥0.1 |
1.8/3.2 |
50-80 |
| KC38 |
38 |
≥0.1 |
1.8/3.2 |
50-80 |
| KC41 |
40 |
≥0.1 |
1.8/3.2/4/6 |
50-80 |
| KC50 |
50 |
≥0.1 |
3.2/4/6/8 |
50-80 |
| KC76 |
76 |
≥0.125 |
4/6/8/10/12.7/16/22/25.4 |
50-80 |
| KC90 |
90 |
≥0.2 |
6/8/10/12.7/16/22/25.4 |
50-80 |
| KC110 |
110 |
≥0.3 |
6/8/10/12.7/16/22/25.4/31.75/32 |
50-80 |
| KC130 |
130 |
≥0.3 |
6/8/10/12.7/16/22/25.4/31.75/32 |
50-80 |
Company Profile
AUTOFOR Company,the craftsman Enterprise leading global exquisite "Precision Cutting Technology" !
AUTOFOR Company, the promoter and the navigator of "Precision Cutting Technology"!
AUTOFOR Company, the industry standard setter and the developer of "Precision Cutting Equipment"!
AUTOFOR Company, the successor and the specialist of "Precision Resin Cutting wheel"!
AUTOFOR Company,the customizer and developer of “ Special Cutting Fluid”!
AUTOFOR Company,the designer and user of “Special Fixture”!
AUTOFOR Company,pledges to specialize in the Precision Cutting Technology for 100 years!
Environmental Protection
AUTOFOR is committed to providing high quality and environmental friendly products for customers. We always put the ISO14001 environmental system into practice. All products of its brands have passed SGS environmental certification. The products are harmless to the environment and human body, and they can achieve zero pollution and zero emission. Let us protect the environment and build a beautiful home together by starting with AUTOFOR!
Application field
AUTOFOR products are widely used in aerospace, automobile, energy, electronics, education and other fields. In the industry of precision cutting technology, it has been in the forefront of domestic counterparts.
