Non Metal Diamond SDR Cutting Wheel For Carbon Fiber Heating Tube
Non Metal Diamond SDR Cutting Wheel For Carbon Fiber Heating Tube
Non Metal Diamond SDR Cutting Wheel For Carbon Fiber Heating Tube Non Metal Diamond SDR Cutting Wheel For Carbon Fiber Heating Tube Non Metal Diamond SDR Cutting Wheel For Carbon Fiber Heating Tube

Non Metal Diamond SDR Cutting Wheel For Carbon Fiber Heating Tube

Product Details:
Brand Name: AUTOFOR
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: Negotiable
Packaging Details: carton/customized
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, Western Union, T/T,
Supply Ability: 1000000pcs/m
Contact Now

Detail Information
Highlight:

cbn cutting wheel

,

diamond cut off wheel

Product Description

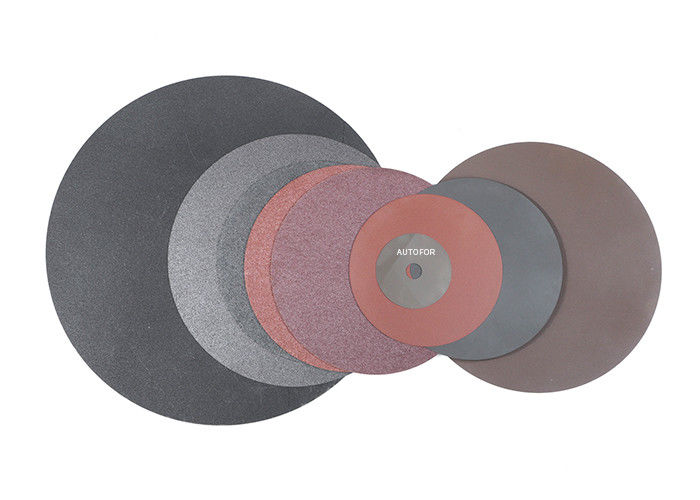

                   Non-metal cutting wheel for Carbon fiber tube

AUTORFOR cutting wheel to cut carbon fiber tube,Carbon fiber heating tube,Carbon fiber pipe,Carbon fiber material,very smooth and high efficiency.



AUTOFOR has developed non-metallic cutting cut-off Wheel for,Non-metallic materials include ceramics, glass epoxy silicon, glass, fiberglass reinforced plastics, quartz, rock, artificial bone, superhard glue wood, cobalt-nickel materials, carbon fibers, polyamide fibers, composite materials and other materials.



It is suitable for cutting, slotting, milling and grooving, metallographic analysis of high-precision cutting.

Various metal/alloy/metallographic/non-metal Precision Cut-off Wheel(size)



Model OD(mm) THK(mm) ID(mm) Line speed (m/s)
WWQ115 115 ≥0.14 12.7/16/25.4/30/31.75/32/40/50 50--80
WWQ125 125 ≥0.15 12.7/16/25.4/30/31.75/32/40/50 50--80
WWQ150 150 ≥0.25 12.7/16/25.4/30/31.75/32/40/50 50--80
WWQ180 180 ≥0.4 12.7/16/25.4/30/31.75/32/40/50 50--80
WWQ205 205 ≥0.4 12.7/16/25.4/30/31.75/32/40/50 50--70
WWQ255 255 ≥0.6 12.7/16/25.4/30/31.75/32/40/50 50--70
WWQ305 305 ≥1.0 12.7/16/25.4/30/31.75/32/40/50 50--70
WWQ355 355 ≥1.5 12.7/16/25.4/30/31.75/32/40/50 50--60
WWQ405 405 ≥1.8 12.7/16/25.4/30/31.75/32/40/50 50--60
WWQ455 455 ≥1.8 12.7/16/25.4/30/31.75/32/40/50 50--60
WWQ510 510 ≥1.8 12.7/16/25.4/30/31.75/32/40/50 40--50

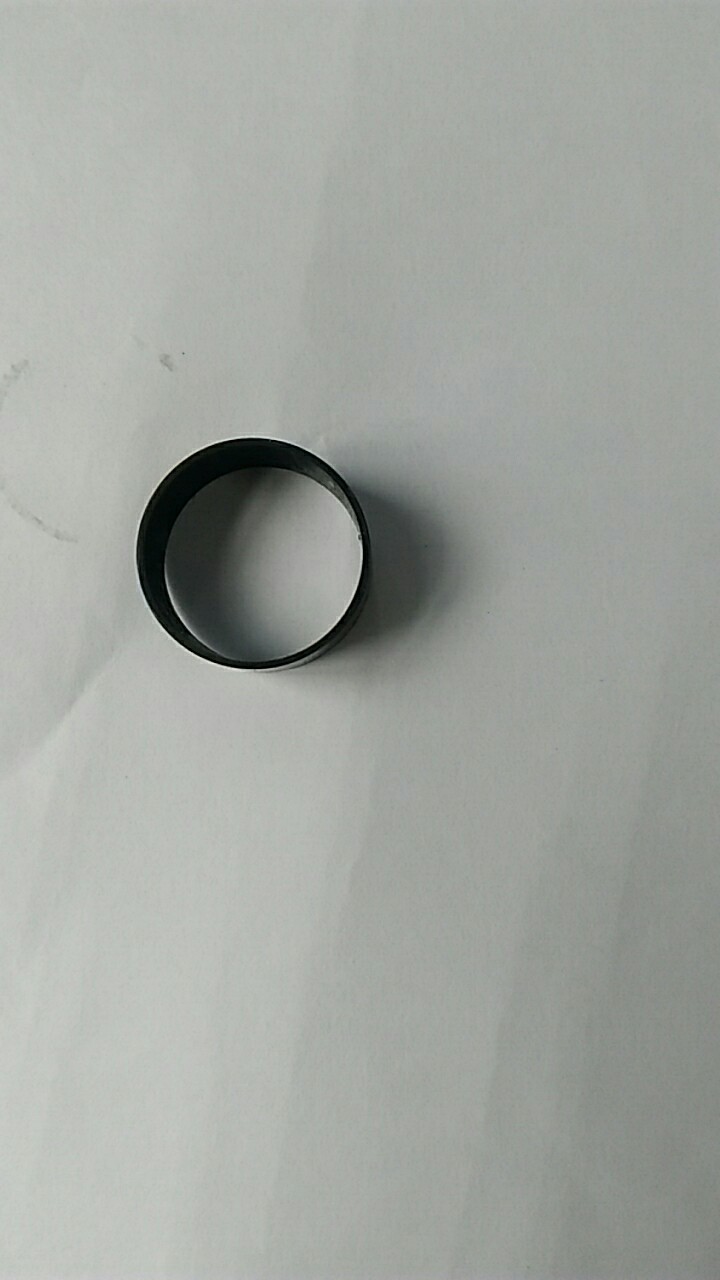

Cutting effects:

Non Metal Diamond SDR Cutting Wheel For Carbon Fiber Heating Tube

Non Metal Diamond SDR Cutting Wheel For Carbon Fiber Heating Tube
