Cubic Boron Nitride Diamond SDR Cutting Wheel For Hardened Tool Steel
Cubic Boron Nitride Diamond SDR Cutting Wheel For Hardened Tool Steel
Cubic Boron Nitride Diamond SDR Cutting Wheel For Hardened Tool Steel Cubic Boron Nitride Diamond SDR Cutting Wheel For Hardened Tool Steel Cubic Boron Nitride Diamond SDR Cutting Wheel For Hardened Tool Steel

Cubic Boron Nitride Diamond SDR Cutting Wheel For Hardened Tool Steel

Product Details:
Place of Origin: China
Brand Name: AUTOFOR
Certification: CE/SGS/ISO9001
Model Number: WWQ305
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: Negotiable
Packaging Details: carton/customized
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, Western Union, T/T,
Supply Ability: 1000000pcs/m
Contact Now

Detail Information
Adhesive: Resin Size: 255*1.5*32mm/customized
Highlight:

cbn cutting wheel

,

diamond cut off wheel

Product Description

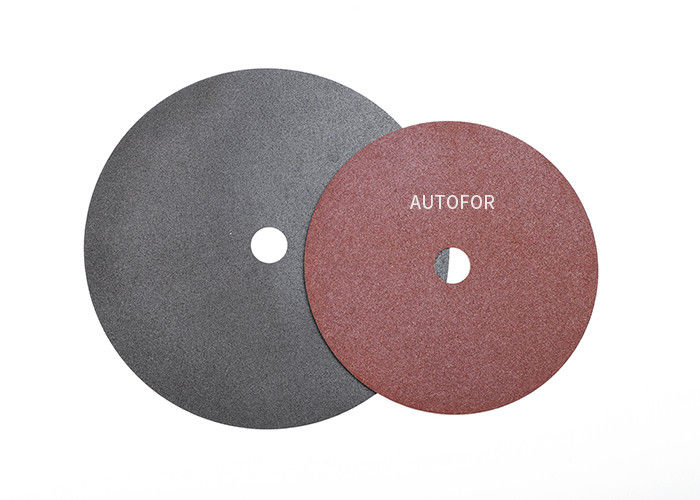

                                  Cubic boron nitride CBN cutting wheel for hardened tool Steel

  AUTOFOR specializes in customize the cubic boron nitride CBN cutting wheel to cut quenched steel; Hardened Steel; ICD;OKS;tool steel,mold steel,die steel,spring steel.It's useful for cutting ,slotting and grooving,and the HRC is above 58,HV is over 700.



high precision super thin cutting wheel(size:mm) Max. speed
Item OD(mm) Thinckness(mm) ID(mm) RPM(r/min) M/S
CB76 76 0.15-0.5 6-50 12600 50
CB90 90 0.3-0.5 6-50 10600 50
CB150 150 0.3-1.0 10-50 6400 50
CB180 180 0.4-1.0 10-50 5300 60
CB205 200 0.7-1.2 10-50 4800 60
CB230 230 0.8-1.2 10-50 4150 60
CB255 255 0.8-1.5 10-50 3800 60
CB305 305 1.0-1.8 10-50 3400 50
CB355 355 1.2-2.0 10-50 3400 50
CB405 405 1.5-2.5 10-50 3400 50
CB455 455 1.5-2.5 10-50 2800 50



【Product Features】
1. Different general traditional grinding wheels have very high precision, strength and rigidity.
2. High cutting precision, not easy to be broken and skewed
3. Used for fixed cutting machines
4. The cutting edge is narrow, which greatly saves steel.
5. No rubber odor when cutting
6. Extremely sharp and durable.
