Product Description

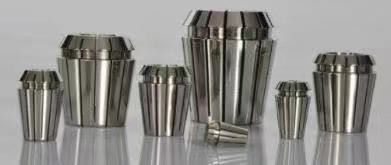

Precision collet chuck Metric collet ER16
Used for clamping drills, wire taps, milling cutters, reamers, etc. · With elastic shrinkage, wide application range
| Metric collet E16 |
| Item no. |
Clamping range |
| ER16-1.0 |
1.0-0.5 |
| ER16-1.5 |
1.5-1.0 |
| ER16-2.0 |
2.0-1.5 |
| ER16-2.5 |
2.5-2.0 |
| ER16-3.0 |
3.0-2.0 |
| ER16-3.5 |
3.5-3.0 |
| ER16-4.0 |
4.0-3.0 |
| ER16-5.0 |
5.0-4.0 |
| ER16-6.0 |
6.0-5.0 |
| ER16-7.0 |
7.0-6.0 |
| ER16-8.0 |
8.0-7.0 |
| ER16-9.0 |
9.0-8.0 |
| ER16-10.0 |
10.0-9.0 |
Material: SUJ2 (high carbon bearing steel: after heat treatment, has toughness and toughness, better wear resistance, and longer elasticity and longer service life) · Hardness: HRC46° · Surface roughness Rz2.5 The inner and inner holes are subjected to strict honing processing and concentricity according to the DIN 6499 standard. There are three kinds of precision grades. S grade 0.015mm, grade A 0.01mm and UP grade 0.005mm·UP grade are recommended for use with HSP nuts. Better stability
Application:
gripping drills, taps, milling cutters, cutters, etc.
It has the function of elastic contraction, wide application range and rich variability.
Usage:
holding drills, wire taps, milling cutters, reamer, etc.
Function:
elastic shrinkage, wide application range, and variability
·Please inform the required accuracy level when ordering
| |
Accuracy |
Item |
Clamp Dia. |
| ER Elastic collet |
0.01 |
A-ER8 |
1-5 |
| A-ER11 |
1-7 |
| A-ER16 |
1-10 |
| A-ER20 |
1-13 |
| A-ER25 |
2-16 |
| A-ER32 |
2-20 |
| A-ER40 |
3-26 |
| 0.005 |
UP-ER8 |
3-5 |
| UP-ER11 |
3-7 |
| UP-ER16 |
3-10 |
| UP-ER20 |
3-13 |
| UP-ER25 |
3-16 |
| UP-ER32 |
3-20 |
| UP-ER40 |
3-26 |
